Home / Produkter / Exhaust air heat pumps / ComfortZone RX35L

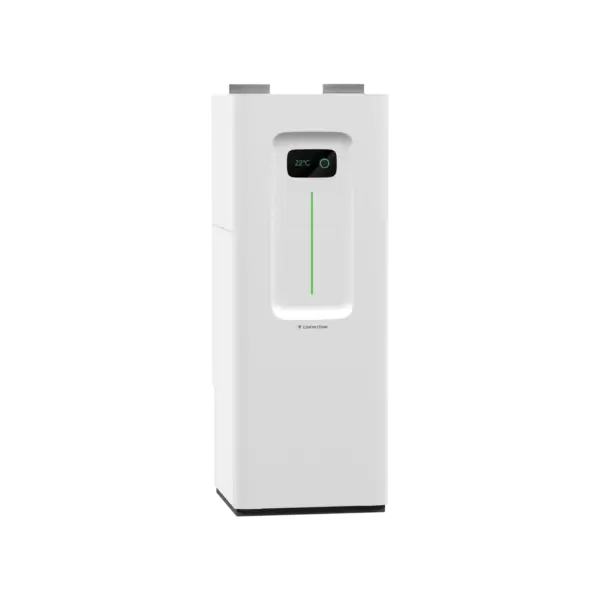

ComfortZone RX35L

Do you wish to purchase an easy-to-maintain heat pump in a detached house where space is in short supply? Then our heat pump RX35L can be of service.

This is a low-rise and reliable exhaust air heat pump for single-family houses of 60 – 120 m². An optional water heater is placed next to it and connected to the heat pump.

Living space:	60 – 120 m²
Exchange:
New estate:

The RX35 gives you by far the lowest total cost compared to other heat pumps on the market, has a lower noise level than previous models and is a more environmentally friendly choice.

Durable heat pump with higher efficiency

The reason why the RX series heat pumps have a lower impact on the environment than previous models is thanks to the refrigerant R32, which also provides higher efficiency. This refrigerant is now available in all models in the RX series.

This heat pump has a compressor that produces 3.5 kW.

Extract air heat pump RX35L

Gives you by far the lowest total cost
Low noise level
High efficiency
More environmentally friendly than previous models

Interested in the product? Find your nearest retailer here!

	Unit	RX35L
Output/Input power at 20(12)/35°C	kW	3,4/0,8*
Output/Input power at 20(12)/50°C	kW	3,5/1,1*
COP medelklimat 35° C / 55° C	kW	4.37 / 3.18
SCOP medelklimat 35° C / 55° C	kW	4.7 / 3.7
Electric cartridge, power (kWh)	kW	6,0**
Refrigerant R32	g	720
Air flow	m³/h	tbd
Flow circulation pump (20 kPa)	m³/h	1,6
Hot water temperature (adjustable)	°C	50-60
Water volume accumulator tank	I	Depending on external tank volume
Hot water capacity	l/h	260
Voltage	V	400 (3-phase+N)
Alternative voltage	V	230 (3-phase+N)
Fuse	A	16
Height	mm	1600
Width	mm	600
Depth	mm	650
Weight	kg	175
Temperature sensor	out+in	out or in

* The power data at 20(12)/35 °C and 20(12)/50 °C are stated according to European standard EN255 without fans and pumps. Indicated temperatures 20°C indicates the air temperature of indoor air and (12)°C indicates the wet temperature of the air link.

** Supplied with 6 kW electric cartridge. The cartridge is adjustable so that, at the time of installation, it can be adapted to Swedish building regulations for newly built houses.

ATTENTION! When comparing with geothermal heat pumps, the power consumption of the brine pump must be taken into account. Corresponding geothermal heat pump loses 10-20% input power and COP through the pump that pumps the refrigerant from the borehole itself 100-150 m up and down. All data is preliminary.

User & Installation Manual, RX Series User Manual RX & RXC Series Brugerhåndbog RX & RXC-serien ComfortZone Product Sheet General RX/RXF Indata VIP-Energy User & Installation Manual, RX-Series RX Indata TMF Energimärkning RX35
